Application
Passive Auto-Catalytic Recombiner(PAR) is used to protect containment building from hydrogen explosion by eliminating hydrogen that might be generated during Design Basis Accident(DBA) and Beyond Design Basis Accident(BDBA) .

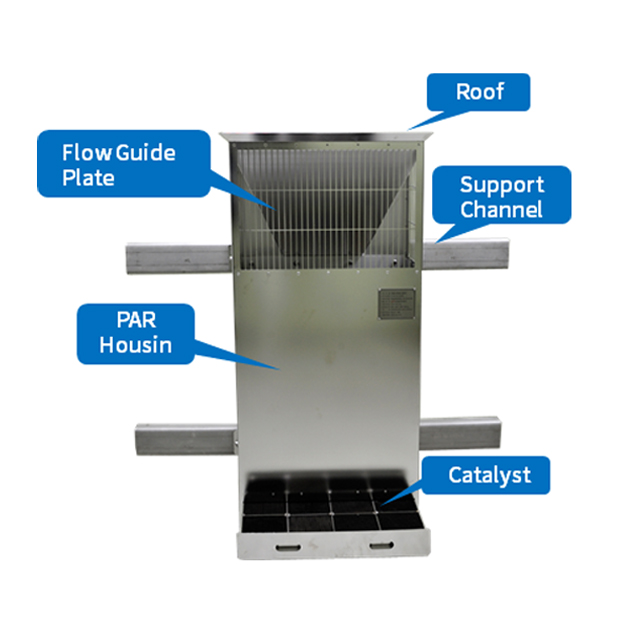

Characteristics

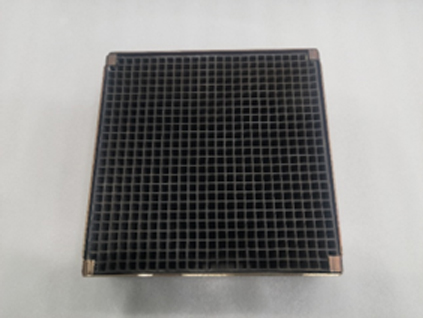

- Honeycomb shape catalysts leading to higher hydrogen removal rate
- Roof with eaves to avoid the inflow from LOCA(Loss Of Coolant Accident) spray.
- Simplified installation and removal of catalysts without disassembling and reassembling.
- Standardized supports for simplified and easy installation at site.
- Outflow guide plate to lower flow resistance.

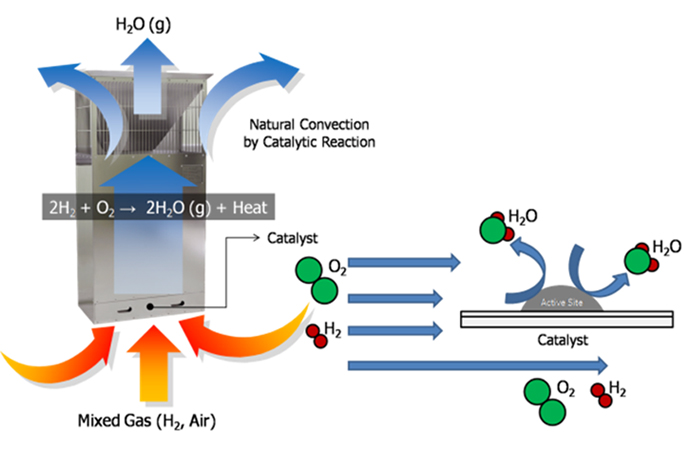

Operation Theory
Specification
(Environmental Condition : 1.5 bar & 60 ℃)| Model | Configuration | Depletion rate(kg/hr) | |||
| Weight(Kg) | Dimension(mm) | No. of Catalyst | at 4 v/o | at 8 v/o | |
| KPAR-40 | 36 | 335x340x1400 | 4 | 1.1 | 2.4 |
| KPAR-80 | 59 | 639x340x1400 | 8 | 2.2 | 4.8 |
| KPAR-160 | 124 | 1276x342x1400 | 16 | 4.4 | 9.6 |

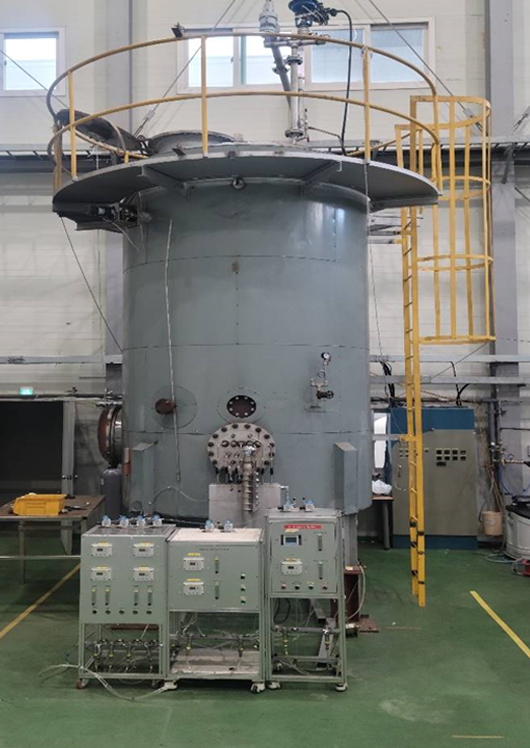

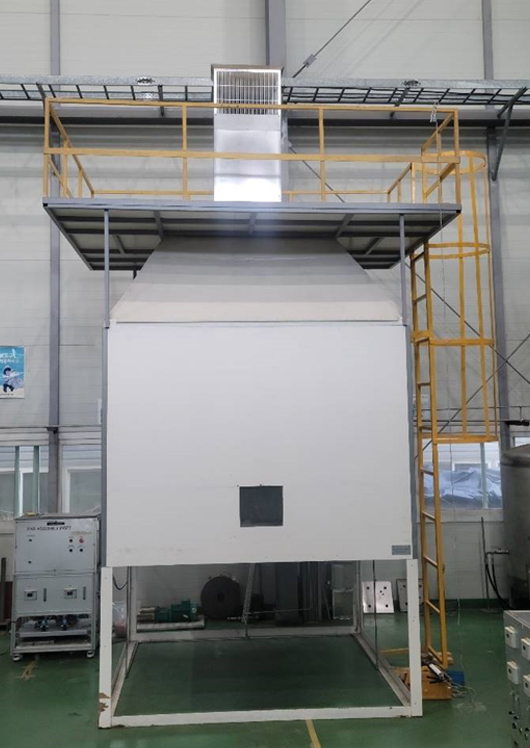

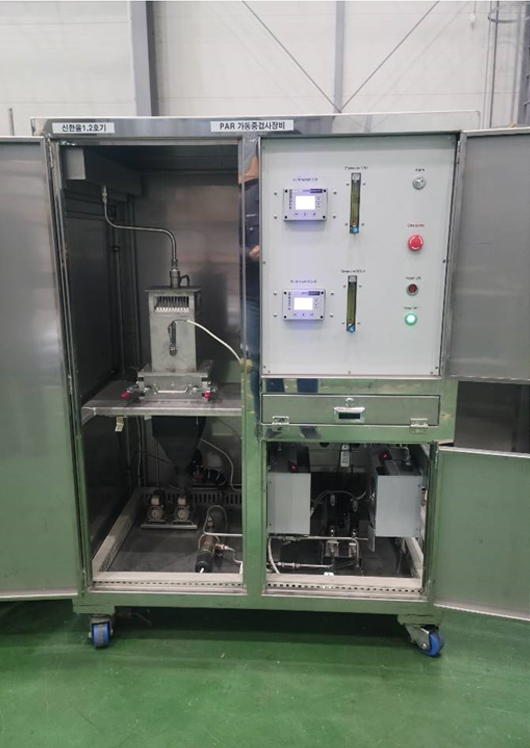

Function Test
Function test is performed to verify PAR assembly’s hydrogen recombination rate by following sequence.
