Application

Hydrogen Monitoring System(HMS) is used to monitor hydrogen concentration of inside containment.

System Configuration

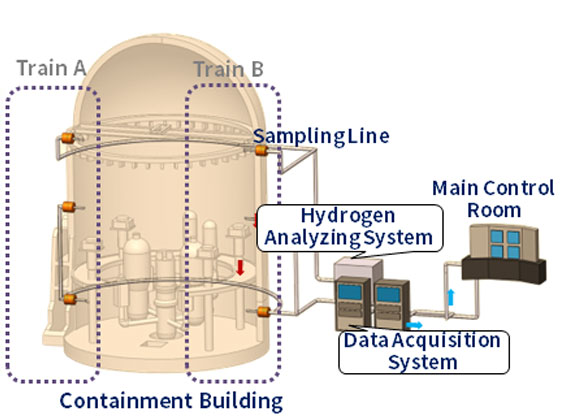

KNT-HMS-SP(Sampling Type)

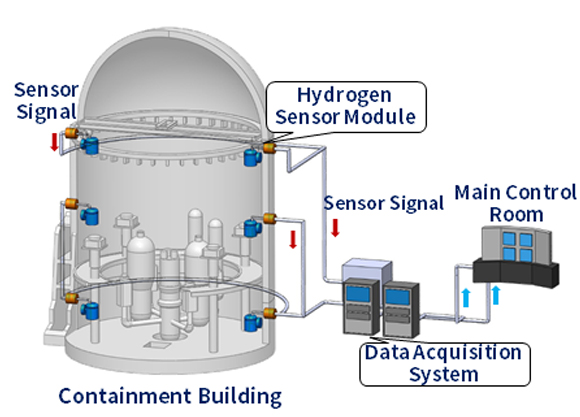

KNT-HMS-SS(Sensing Type)

Features

  • Application : Design Basis Accident(DBA), Beyond Design Basis Accident(BDBA)
  • Measuring Range : 0 ~ 30 vol.%
  • Sensor Type : Thermal Catalytic or Thermal Conductivity

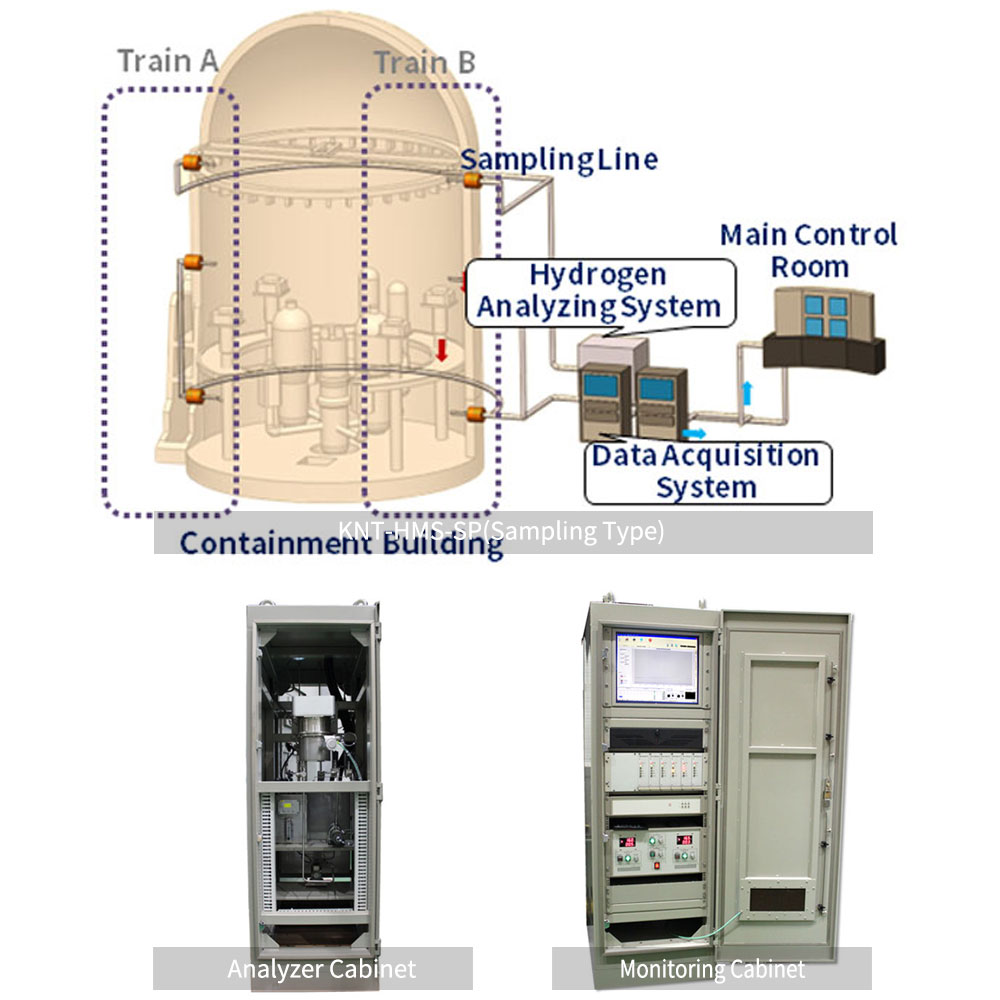

1. KNT-HMS-ST (Sampling Type)

Features

  • High pressure and temperature compensated algorithm
  • Range : 0.0~30.0 vol. % air balanced
  • Equipment Qualification Tests(Environmental, Seismic test & EMC/ EMI test)
  • Potential free-4-20mA output and DPDT Relay
  • Configurable through RS485
  • Embedded Calibration Control Kit
Analyzer Cabinet
Monitoring Cabinet

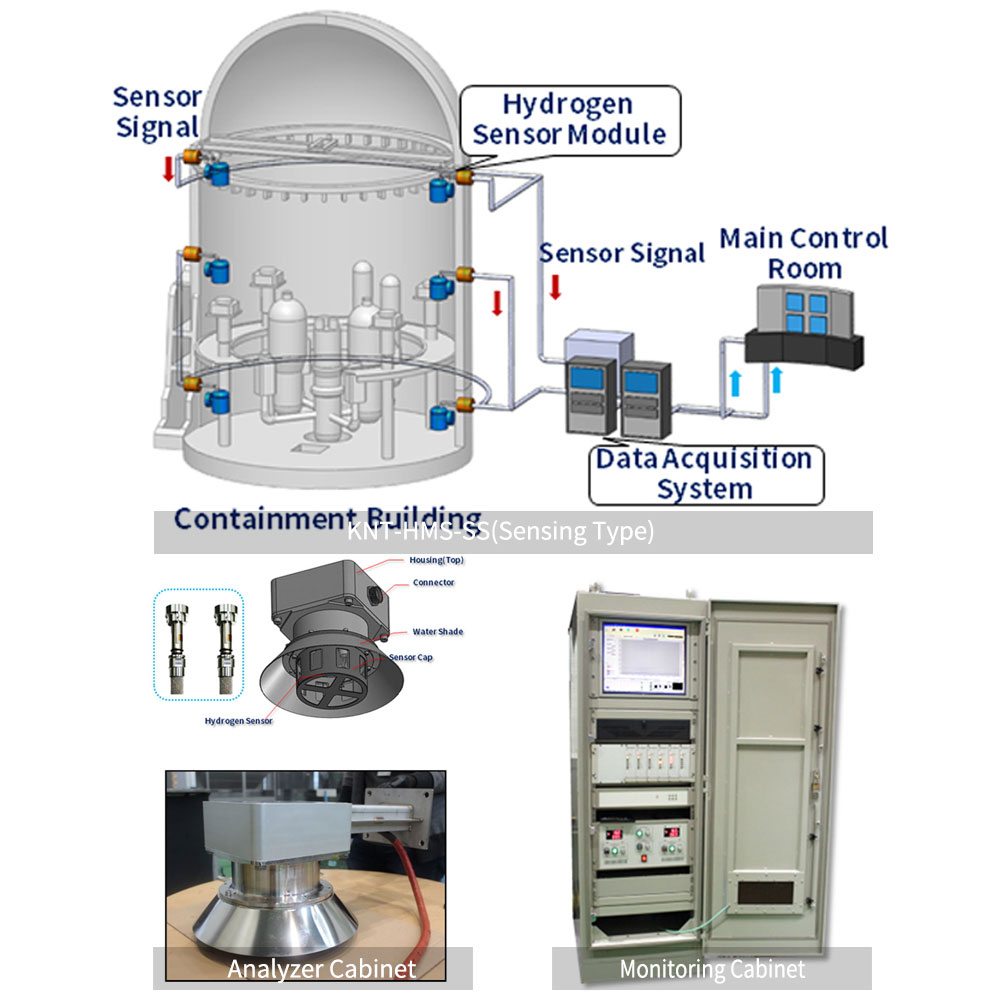

2) KNT-HMS-ST (Sensing Type)

Characteristics

  • High Pressure and Temperature compensation algorithm
  • Range : 0.0~30.0 vol.% air balanced
  • Easy maintenance by applying dual sensor technology
  • Equipment Qualification Test
  • Potential free-4-20mA output and DPDT Relays
(1) Sensor Module
(2) Monitoring Cabinet
3) KNT-HMS-RT (Remote Type)

Characteristics

  • Detection Range : ~ 100.0 vol.%
  • Remote Detection : ~ 200 m
  • Fast Response Time
  • Real Time Detection

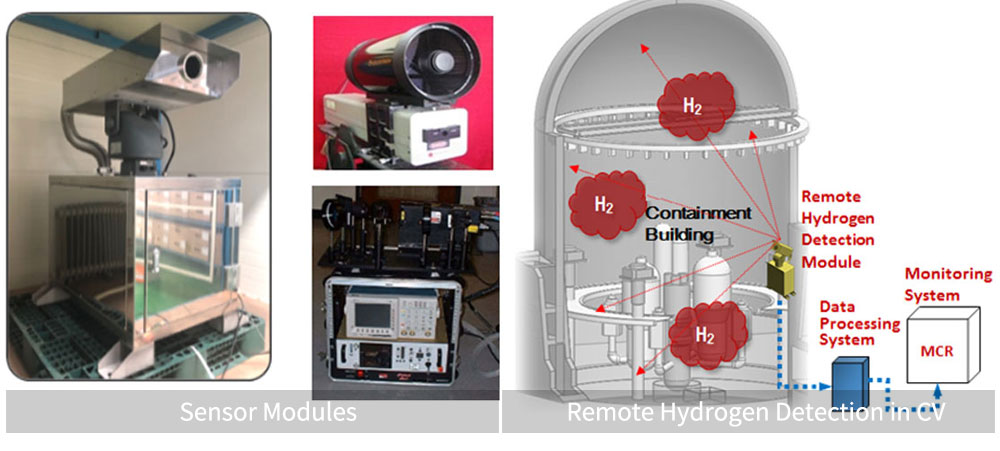

(1) Sensor Modules
(2) Remote Hydrogen Detection in CV
